Sydney Harbour Bridge and its great steel arch over Sydney Harbour
Published on 09/05/2026 at 19:16 | Editorial responsibility: Rafael Müller, Editor-in-Chief AD HOC NEWS
Sydney Harbour Bridge is the great steel arch that ties central Sydney to its northern suburbs across the deep waters of Sydney Harbour, combining heavy engineering with a broad public crossing opened in 1932.
A single steel arch spanning the harbour

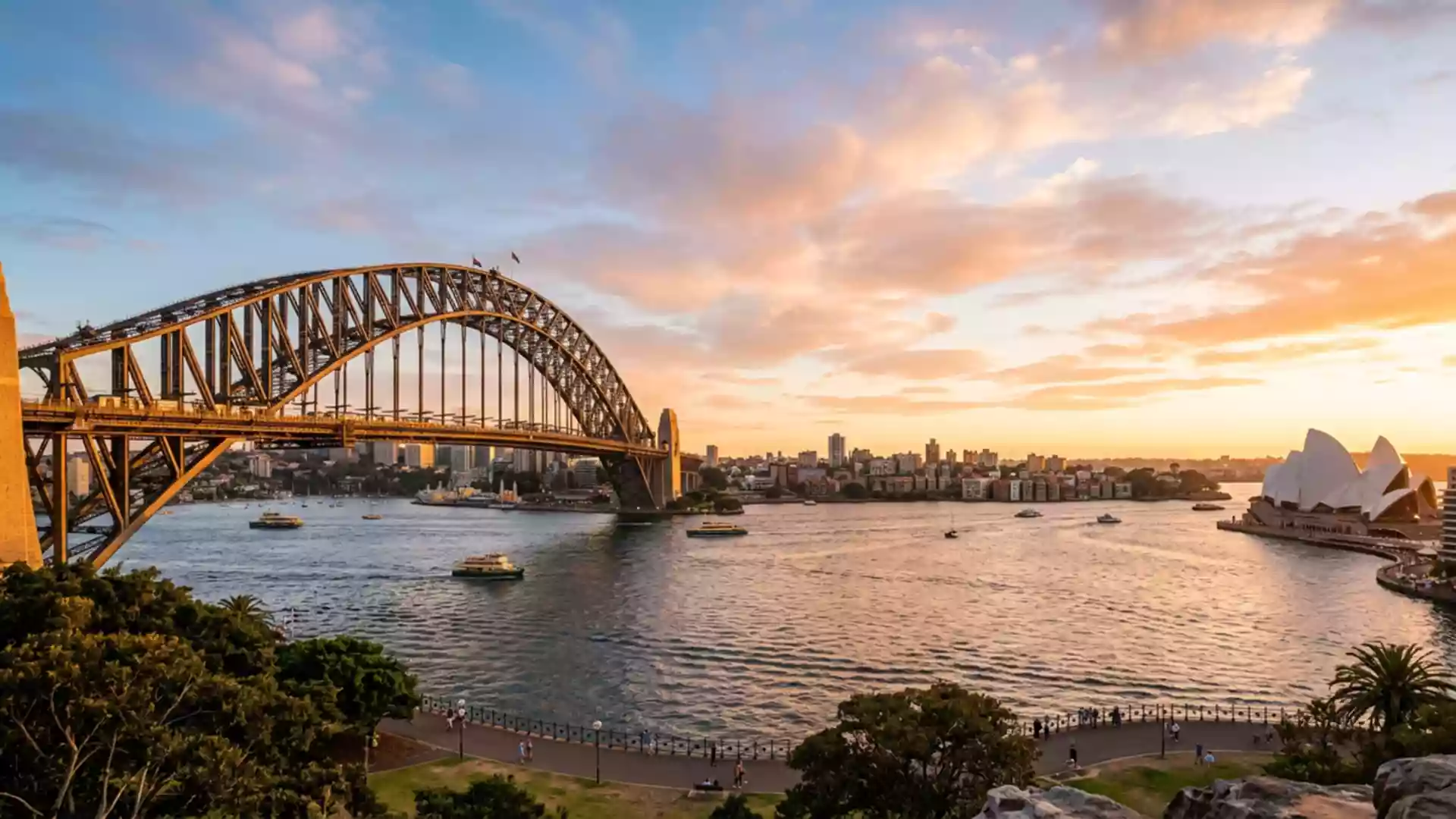

The defining feature of Sydney Harbour Bridge is its vast steel arch that stretches from Dawes Point on the southern shore to Milsons Point on the northern side of the harbour. The arch span reaches 503 m (1,651 ft) between its bearings, rising to about 134 m (440 ft) above mean sea level at its crown, a profile that leaves generous clearance for shipping beneath.503 m arch span Including the approach spans that lead in from both shores, the total length of Sydney Harbour Bridge is about 1,149 m (3,770 ft), and its deck width of roughly 49 m (161 ft) carries multiple traffic lanes, railway tracks and pathways side by side.total length and width
Structurally, the bridge is a two-hinged steel arch with the roadway and rail deck suspended beneath from a lattice of vertical hangers and diagonal bracing members.two-hinged steel arch The steelwork involves tens of thousands of tonnes of structural steel, with figures of about 52,800 tonnes for the whole bridge and around 39,000 tonnes for the arch alone conveying the mass of early twentieth-century steel bridge engineering.total weight of steelwork Solid pylons rise at each end, framing the arch and giving the crossing a monumental outline on the skyline.
From design vision to 1930s landmark
Ideas for a bridge over Sydney Harbour circulated for more than a century before construction began, with convict architect Francis Greenway proposing a crossing to Governor Lachlan Macquarie as early as 1815.Francis Greenway proposal Engineer John Job Crew Bradfield of the New South Wales Department of Public Works developed a design that placed a steel arch bridge at the centre of an integrated pattern of roads and railways converging on the harbour, and the Sydney Harbour Bridge Act passed in 1922 cleared the way for funding and detailed work.Sydney Harbour Bridge Act 1922
A contract to build the bridge went to British firm Dorman Long & Company of Middlesbrough in 1924, and construction of the main steelwork commenced in the mid-1920s.Dorman Long contract The steel arch was assembled by building out from each bank over the harbour until the two halves met in 1930, an operation that required careful alignment without the use of temporary supports rising from the water.arch halves meeting in 1930 Sydney Harbour Bridge was officially opened to traffic on 19 March 1932, with New South Wales Premier Jack Lang presiding over the ceremony as the crossing took its place as a major piece of infrastructure linking the northern and southern shores.opening on 19 March 1932
An Australian engineering icon in daily use
Sydney Harbour Bridge is recognised on Australia’s National Heritage List for its technical, historical and social significance, reflecting both its scale and its role in the development of modern Sydney.National Heritage assessment It carries road traffic, railway lines, a cycleway and a pedestrian footpath across the harbour, making the deck a mixed corridor where commuters, visitors and local residents share the same structural platform over the water.primary transport link The bridge’s arched silhouette has earned it the nickname “Coat Hanger” and has become one of the most recognisable shapes associated with Australia’s largest city.“Coat Hanger” nickname
For travellers, Sydney Harbour Bridge is both infrastructure and vantage point. The pedestrian walkway along the eastern side of the deck offers views of Sydney Opera House, Circular Quay and the broader harbour, while the western side looks towards the city’s inner suburbs. At each end, granite-faced pylons and approach viaducts anchor the structure into the urban fabric, and parks and foreshore paths give access to waterfront perspectives on the arch rising over the channel.
Visiting Sydney Harbour Bridge: what travellers from Western Europe should know
- Sydney Harbour Bridge crosses the main inlet of Sydney Harbour between the central business district and the North Shore, with approaches leading from Circular Quay and The Rocks on the south side and from Milsons Point and North Sydney on the north side.
- The deck sits high above the water and is reached by approach roads, ramps and stairways; walking routes involve staircases and kerbs that require steady footing, especially near the pylons.
- On the southern side, The Rocks and Circular Quay lie close to the bridge, while on the northern shore residential streets and foreshore parks provide additional viewpoints of the arch and the harbour channel.
- The official language is English and the currency is the Australian dollar.
- Entry requirements depend on your nationality; UK travellers can check the FCDO travel advice at gov.uk/foreign-travel-advice, Irish travellers the Department of Foreign Affairs at ireland.ie.
Searching for Sydney Harbour Bridge on social platforms
These links open searches for Sydney Harbour Bridge on each platform.
Frequently asked questions about Sydney Harbour Bridge
Where is Sydney Harbour Bridge located?
Sydney Harbour Bridge crosses Sydney Harbour between the central business district and the North Shore, linking areas such as The Rocks and Circular Quay to Milsons Point and North Sydney.
What can visitors expect when crossing Sydney Harbour Bridge?
Visitors using the bridge encounter a broad deck carrying road traffic, rail lines, a cycleway and a pedestrian footpath, with granite pylons and views over the harbour on both sides.
What makes Sydney Harbour Bridge distinctive as a landmark?
The bridge is distinctive for its large steel arch span of 503 m (1,651 ft), its 1932 opening as a major transport link, and its recognised status as an Australian engineering icon.
